Electronic Detonator Control System (Wireless)
Wireless
Characteristic
The wireless electronic detonator control system consists of a logger, a blaster, and driver(s). The wireless communication distance between the blaster and the driver can reach up to 5km (visible distance). The main application fields are open-pit coal mines, metal mines, quarries, and other open-pit blasting scenarios. The system supports blasting program import or on-site programming and can work at -30℃ temperatures.

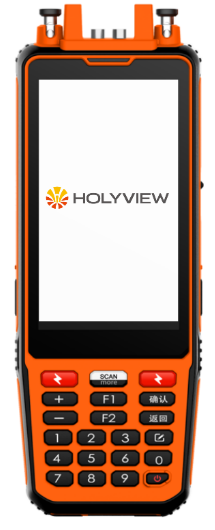

Blaster
Device Capacity
Typical 500 detonators
(Max 1000 detonators)
(Max 1000 detonators)
Blast Capacity (Cascade Mode)
Max 20,000 detonators in one blasting
(20 drivers)
(20 drivers)
Communication Mode
Wireless
Wireless Distance
Typical 2 km
Max 5 km (Visible distance)
Max 5 km (Visible distance)
Programming Mode
/
Available Languages
English
Operating System
Android 10
GNSS Positioning
External
Frequency
868MHz
(could be customized to the region)
(could be customized to the region)
Firmware Upgrade
OTA Through WIFI / 4G
Battery Type
Li-Ion / 7.7V / 4750mAh
Autonomy of the Battery
8 hours
Charger
Input: 100-240 VAC / 50/60 Hz, 0.6 A
Output: 6-9 VDC
Rated Current: 1.5A
Fully Charging Time: 4 hours
Output: 6-9 VDC
Rated Current: 1.5A
Fully Charging Time: 4 hours
Ingress Protection Rating
IP67
Operating Temperature
-30℃~+60℃
Logger
Device Capacity
Typical 500 detonators
(Max 1000 detonators)
(Max 1000 detonators)
Blast Capacity (Cascade Mode)
Max 20,000 detonators in one blasting
(20 drivers)
(20 drivers)
Communication Mode
Wireless
Wireless Distance
/
Programming Mode
Manual
Upload from U disk
Upload from U disk
Available Languages
English
Operating System
Android 10
GNSS Positioning
External
Frequency
868MHz
(could be customized to the region)
(could be customized to the region)
Firmware Upgrade
OTA Through WIFI / 4G
Battery Type
Li-Ion / 7.7V / 4750mAh
Autonomy of the Battery
8 hours
Charger
Input: 100-240 VAC / 50/60 Hz, 0.6 A
Output: 6-9 VDC
Rated Current: 1.5A
Fully Charging Time: 4 hours
Output: 6-9 VDC
Rated Current: 1.5A
Fully Charging Time: 4 hours
Ingress Protection Rating
IP67
Operating Temperature
-30℃~+60℃
Driver
Device Capacity
Typical 500 detonators
(Max 1000 detonators)
(Max 1000 detonators)
Blast Capacity (Cascade Mode)
Max 20,000 detonators in one blasting
(20 drivers)
(20 drivers)
Communication Mode
Wireless
Wireless Distance
/
Programming Mode
/
Available Languages
English
Operating System
MCU
GNSS Positioning
/
Frequency
868MHz
(could be customized to the region)
(could be customized to the region)
Firmware Upgrade
OTA Through WIFI / 4G
Battery Type
Li-Ion / 7.7V / 4750mAh
Autonomy of the Battery
8 hours
Charger
Input: 100-240 VAC / 50/60 Hz, 0.6 A
Output: 6-9 VDC
Rated Current: 1.5A
Fully Charging Time: 4 hours
Output: 6-9 VDC
Rated Current: 1.5A
Fully Charging Time: 4 hours
Ingress Protection Rating
IP65
Operating Temperature
-30℃~+60℃
